Application
ISO+ (Insulated Flexible Duct) is a range of fully flexible thermally insulated ducting, which has been specially designed for the HVAC market. The ISO+ range has been developed to minimise the heat gain or loss resulting from the temperature difference between the air flowing in a duct and the surrounding air. The vapour barrier prevents condensation forming on the outside of ducts carrying air at lower temperatures than the surrounding air.

Construction

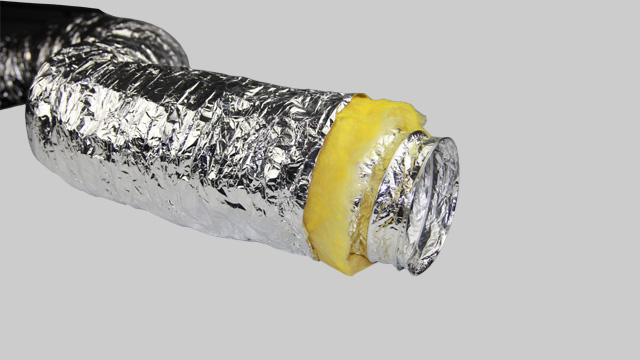

ISO+ consists of one of the ALU+ innerducts, 25 mm thick fibreglass insulation and is covered with either a vapour barrier outerjacket or one of the ALU+ ducts.
The JACKET+ used is either a spirally produced multi-layer Aluminium/Polyester Laminated Construction or a Metalized Polyester Jacket.
Since all the individual components of the ISO+ products are assembled at the production plant, you can make your own combination you need for your application. Already a selection has been made as described underneath.
Options for fiberglass: yellow, red, white.

Advantages
♦ Supplied in standard 10 metre length, compressed to 1-1.2 metre. Diameter available from 3"~48" ( 076mm~1200mm).
♦ Individually boxed.
♦ Low costs on transport and logistic.
♦ Easy to install over either round or oval ducting.
♦ No special tools required for cutting or fixing.
♦ In case of a fire no toxic gases are emitted.
♦ The products have been tested on fire resistance.
