Performance Parameter
Model No.SpeedVoltage/Frequency
(V/Hz)		Current
(Amps)		Power
(W)		Speed
(RPM)		Airflow
(m3/h)		Air Pressure
(Pa)		Noise
(dB)		Net Weight
(kgs)
HF-100PH
L		220-240/500.12
0.11		26
23		2200
1850		198
165		156
131		31
26		1.5
H
L		100-120/600.31
0.28		35
30		2200
1850		198
165		156
131		31
26
HF-125PH
L		220-240/500.14
0.13		33
28		2250
1850		284
248		159
106		32
26		1.5
H
L		100-120/600.35
0.31		38
32		2250
1850		284
248		159
106		32
26
HF-150PH
L		220-240/500.22
0.19		54
44		2250
1850		530
410		300
240		33
29		2.6
H
L		100-120/600.55
0.45		62
49		2250
1850		530
410		300
240		33
29
HF-200PH
L		220-240/500.53
0.52		128
123		2450
1950		840
690		352
274		63
55		4.9
H
L		100-120/601.60
1.30		165
135		2450
1950		840
690		352
274		63
55
HF-250PH
L		220-240/501.20
0.75		225
165		2450
1850		1450
1064		488
371		66
58		7.5
H
L		100-120/602.60
1.80		290
210		2450
1850		1450
1064		488
371		66
58
HF-315PH
L		220-240/501.90
1.40		390
275		2350
1650		2206
1750		693
435		69
61		11
H
L		100-120/603.70
3.00		412
330		2350
1650		2206
1750		693
435		69
61

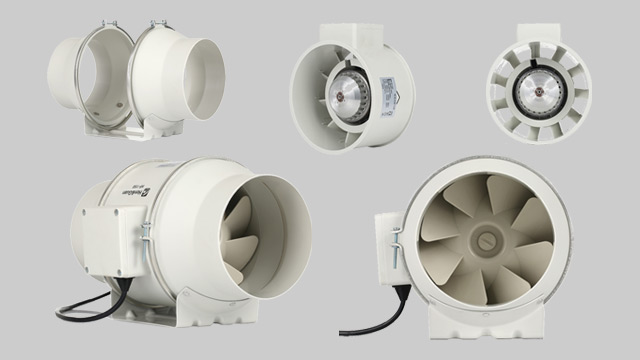

Product Features
♦ PP material, anti-acid alkali.
♦ Big airflow and air pressure.
♦ Double NMB ball bearing, long working life-over 50000 hours.
♦ Easy installation.
♦ Protection grade: IP44.
♦ Operation temperature range: -20℃-60℃.
♦ Perfect for office, meeting room, public place, hotel, apartment, hospital etc.

Optional Functions
♦ Three-speed motor(high, middle, low).
♦ Timer.
♦ Temperature, humidity sensor.

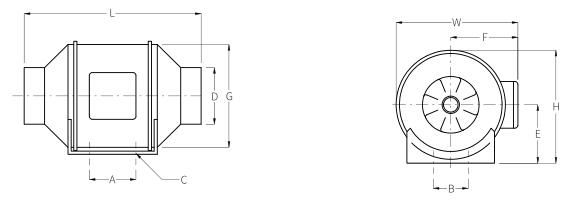

Dimensions(mm)
ModelABCØDEFØGLWH
HF-100P80604-ø4.59799116163302204195
HF-125P80604-ø4.512399116163257204195
HF-150P80604-ø5.0147109127187313227208
HF-200P100944-ø5.5197125137205302249237
HF-250P1501504-ø8*11247150174261383310286
HF-315P1811784-ø8*11312187216325446386357
